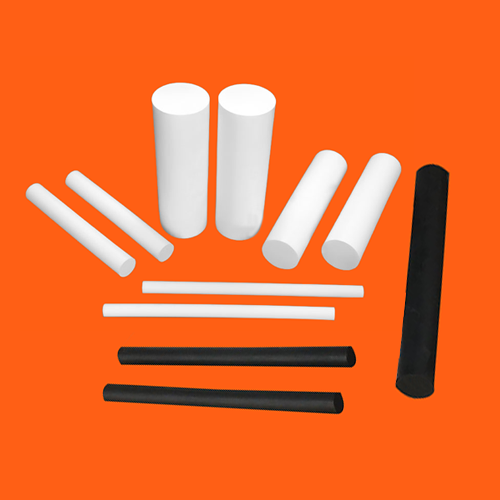

PTFE ROD

Ram Extruded Rods

  • Available in Standard Meter Lengths
  • Diameter Ranging from 6 mm to 200 mm

Compression Moulded Rods

  • Available from 16 mm Diameter to 300 mm Diameter
  • 300 mm Length
  • Also, available in filled PTFE grades such as Carbon, Bronze, Glass Filled, Molybdenum, Graphite, Glass Graphite, etc as per requirement.
  • These are standard sizes. We can also undertake order for specific requirements.

PTFE ROD ( HSN CODE : 39161010 )

300mm Length (Molded Rods)
1000mm Length (Extruded Rods)
Sr.No. Size(DIA)mm Sr.No. Size(DIA)mm Sr.No. Size(DIA)mm Sr.No. Size(DIA)mm
01 12.5 X 300 29 105 X 300 01 3 29 55
02 16 X 300 30 108 X 300 02 4 30 60
03 19 X 300 31 110 X 300 03 5 31 65
04 20 X 300 32 115 X 300 04 6 32 70
05 22 X 300 33 120 X 300 05 7.2 33 75
06 25 X 300 34 125 X 300 06 8 34 80
07 28 X 300 35 130 X 300 07 9.5 35 85
08 30 X 300 36 135 X 300 08 10 36 90
09 32 X 300 37 140 X 300 09 11.2 37 95
10 35 X 300 38 145 X 300 10 12 38 100
11 38 X 300 39 150 X 300 11 12.5 39 110
12 40 X 300 40 155 X 300 12 13 40 115
13 42 X 300 41 160 X 300 13 14 41 120
14 45 X 300 42 165 X 300 14 15 42 125
15 50 X 300 43 170 X 300 15 16 43 130
16 55 X 300 44 175 X 300 16 18 44 150
17 57 X 300 45 180 X 300 17 19 45 180
18 60 X 300 46 185 X 300 18 20 46 200
19 63 X 300 47 190 X 300 19 22 47 225
20 65 X 300 48 195 X 300 20 25 48 250
21 70 X 300 49 200 X 300 21 28 49 275
22 75 X 300 50 225 X 300 22 30 50 300
23 80 X 300 51 250 X 300 23 32
24 82 X 300 52 275 X 300 24 35
25 85 X 300 53 300 X 300 25 38
26 90 X 300 54 325 X 300 26 40
27 95 X 300 55 350 X 300 27 45
28 100 X 300 56 400 X 300 28 50
